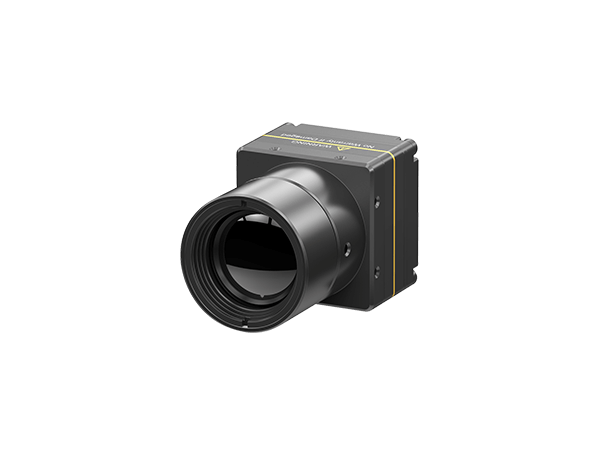

COIN417G2

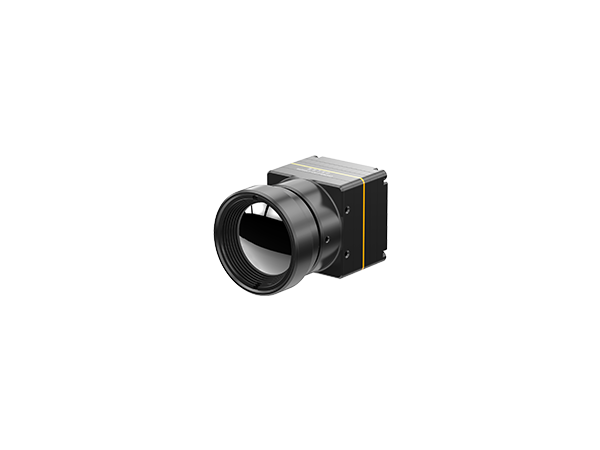

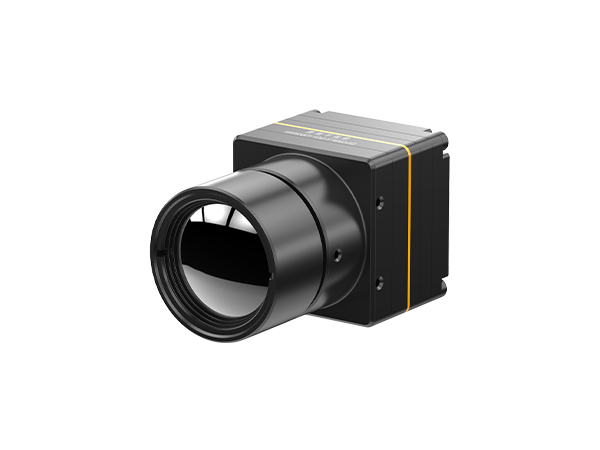

New Generation COIN417G2 384X288 VOx Uncooled Thermal Module

Main Features:

  • - Mini Size: 25.4x25.4x29.3mm (with 9.1mm Lens)
  • - Light Weight: 29g±3g (with 9.1mm Lens)
  • - NETD<40mk
  • - Enhanced Image Quality
  • - Low Power Consumption
  • - Rapid Development & Integration

Description:

COIN417G2 uncooled infrared module is a new generation version of COIN417 developed by Global Sensor Technology (GST). It integrates 384x288@17μm wafer level package (WLP) infrared imaging detector, high performance signal processing circuit and image processing algorithm.

The COIN417G2 infrared module features in sharp and crisp thermal image presentation, compact size and low cost. It also has an optional thermographic function with measurement range from -20℃~550 ℃ for industrial temperature measurement.

Until now, we have provided our customers with various mature and stable infrared thermal imaging solutions. It’s easier for COIN series thermal imaging common module to be integrated into more terminal products and greatly reduces the cost for customers.

Application:

Specifications:

Model COIN417G2
IR Detector Performance
Resolution 384X288
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <40mk
Image Processing
Frame Rate 50Hz/30Hz/25Hz
Start-up Time ≤3s
Analog Video PAL/NTSC
Digital Video YUV/BT.656/LVDS/USB2.0
Image Algorithm Non-uniformity Correction (NUC)
3D Noise Reduction (3DNR)
2D Noise Reduction (DNS)
Dynamic Range Compression (DRC)
Edge Enhancement (EE)
Pseudo Color 10 Types
Electrical Specification
Standard External Interface 50Pin_HRS: DF40C-50DP-0.4V(51)
USB Extension Board Type-C
Communication Interface TTL-232/USB2.0
Digital Video Interface CMOS8/CMOS16/LVDS/USB2.0
Power System
Supply Voltage 4V~5.5V DC
Typical Power Consumption 0.7W/5V @23±3℃
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Measurement Range -20°C~150°C, 0°C~550°C; Support Customization and Expansion of Temperature Measurement range
Temperature Accuracy Greater of ±3℃/±3%
Temperature Measurement Type Support Point, Regional, Isothermal Thermography
SDK Support ARM/Windows/Linux SDK, Full Screen Thermography
Physical Characteristics
Size (mm) 25.4mm×25.4mm×29.3mm(With 9.1mm Lens)
25.4mm×25.4mm×41.2mm(With 13mm Lens)
25.4mm×25.4mm×40.1mm(With 19mm Lens)
Weight 29g±3g(With 9.1mm Lens)
42g±3g(With 13mm Lens)
44g±3g(With 19mm Lens)
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 9.1mm/13mm/19mm

For more information, please click the button below to download a PDF of the product.
