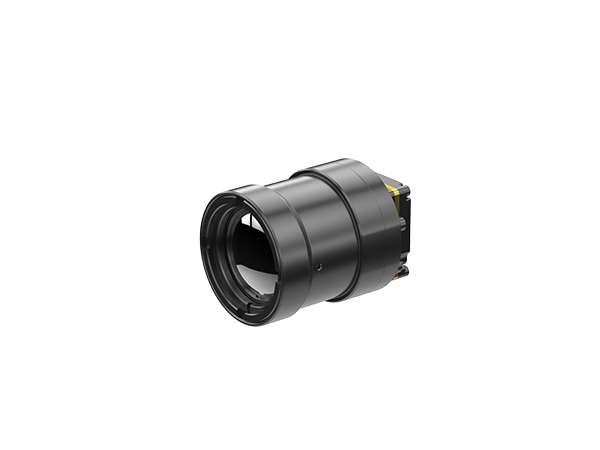

iGS412

Shutterless Uncooled Infrared Camera Core 384×288/12μm

Main Features:

Shutterless Solution
• No need shutter correction during use
• Mute operation for good concealment

Strong Impact Resistance, High Reliability
• Impact resistance up to 1500g, duration 0.4ms Tiny and Light
• Max outer diameter≤φ36, weight ≤28.6g (bare module)

Powerful Features, Easy Integration
• Support reticle, picture in picture, keypads etc.
• Support various video interfaces
• Various lenses are available for different applications: manual focus/motorized lens/continuous zoom
• Support to drive various Micro OLEDs

Send message to us

Description:

The iGS series shutterless infrared camera core does not require shutter correction during operation. It can adapt to 1500g@0.4ms strong impact environment and solve problems of jamming or noise encountered by observers. In order to meet the personalized needs of integrators, iGS series infrared camera core is equipped with multiple functions such as a reticle, external OLED, keypads and provides various video interfaces and lenses for easy integration. The outer diameter does not exceed φ36 and bare weight is no more than 28.6g. Such a powerful performance infrared camera core truly provides first-class observation experience under limited space and load conditions.

Application:

Intelligent Hardware

Smart Home

Smart building

AIoT

Video:

Specifications:

Model	iGS412
IR Detector Performance
Resolution	384×288/12μm
Spectral Response	8~14μm
Typical NETD	≤30mk@f1.0/25℃
Image Display Performance
Digital Video Format	RAW/YUV
Frame Rate	25Hz/30Hz/50Hz
Image Algorithm	NUC/3DNR/DNS/DRC/EE
Pseudo Color	10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
Digital Zoom	1x/2x/4x
Mirror Image	Horizontal/Vertical/Diagonal
Reticle	10 Types
Reticle Brightness	10 Levels
Reticle Color	Red, Blue, Yellow, Black, White
Picture in Picture	Support Upper Left/Upper Middle/Upper Right/Picture-in-Picture with Reticle
Zero Calibration	Support
Approximate Ranging	Support
Ranging Calibration	Support
System Function
Peripheral Drive	Support I2C, 16bit Parallel Port, Datavalid and Other Drive Screen Signals Direct Drive MicroOLED MDP03/MicroOLED MDP02/Ored SVGA060/Sony ECX334A
Electrical Characteristics
Standard External Interface	50pin: BP040SB-50-0114-B-R0
Digital Video Interface	DVP8/DVP16/USB2.0/LVDS/BT.656
Communication Interface	RS232-TTL/USB2.0
Working Voltage	DC: 2.7-5.3v
Power Consumption	0.5W@23±3℃
Keypads	≥3
Extension Components	CameraLink/HDMI/USB3.0/USB2.0/GigE/VPC/MIPI/XGA/HD-SDI/AHDL
Physical Characteristics
Size (Bare Module)	≤ φ36 (Max Outer Diameter)
Weight (Bare Module)	≤28.6g
Environmental Protection	ROHS2.0/REACH
Environmental Adaptability
Operating Temperature	-40℃ ~ + 70℃ (Imaging)
Storage Temperature	-45℃~+85℃
Vibration	Random Vibration, 5.35grms, 3-axis
Shock	1500g@0.4ms
Optics
Optical Lens	Manual Focus: 25mm/35mm/50mm Fixed Focus Athermal: 19mm/25mm/35mm/50mm/70mm/100mm Motorized Lens: 75mm/100mm/150mm Continuous Zoom: 28~90mm/30~180mm
